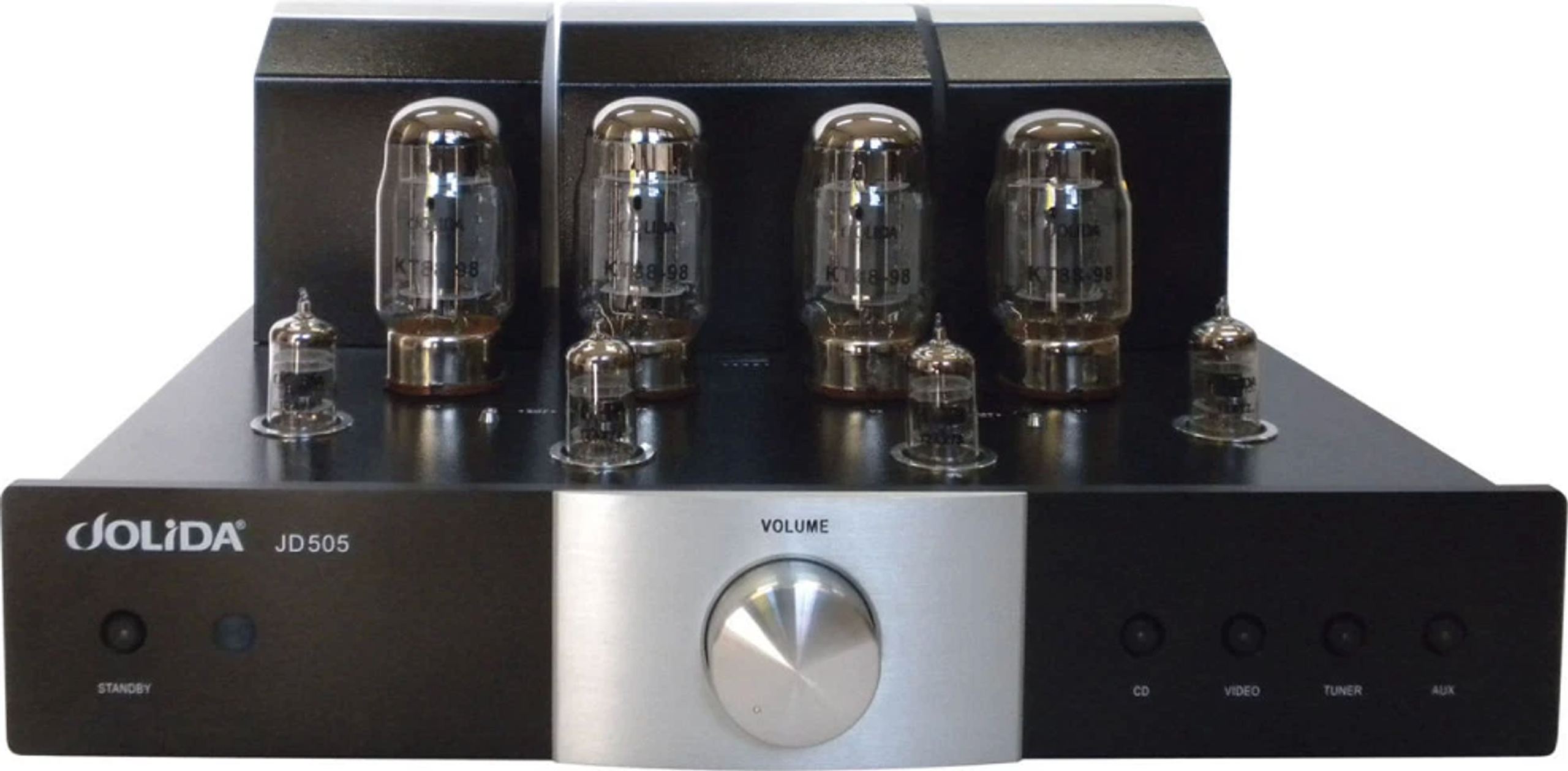

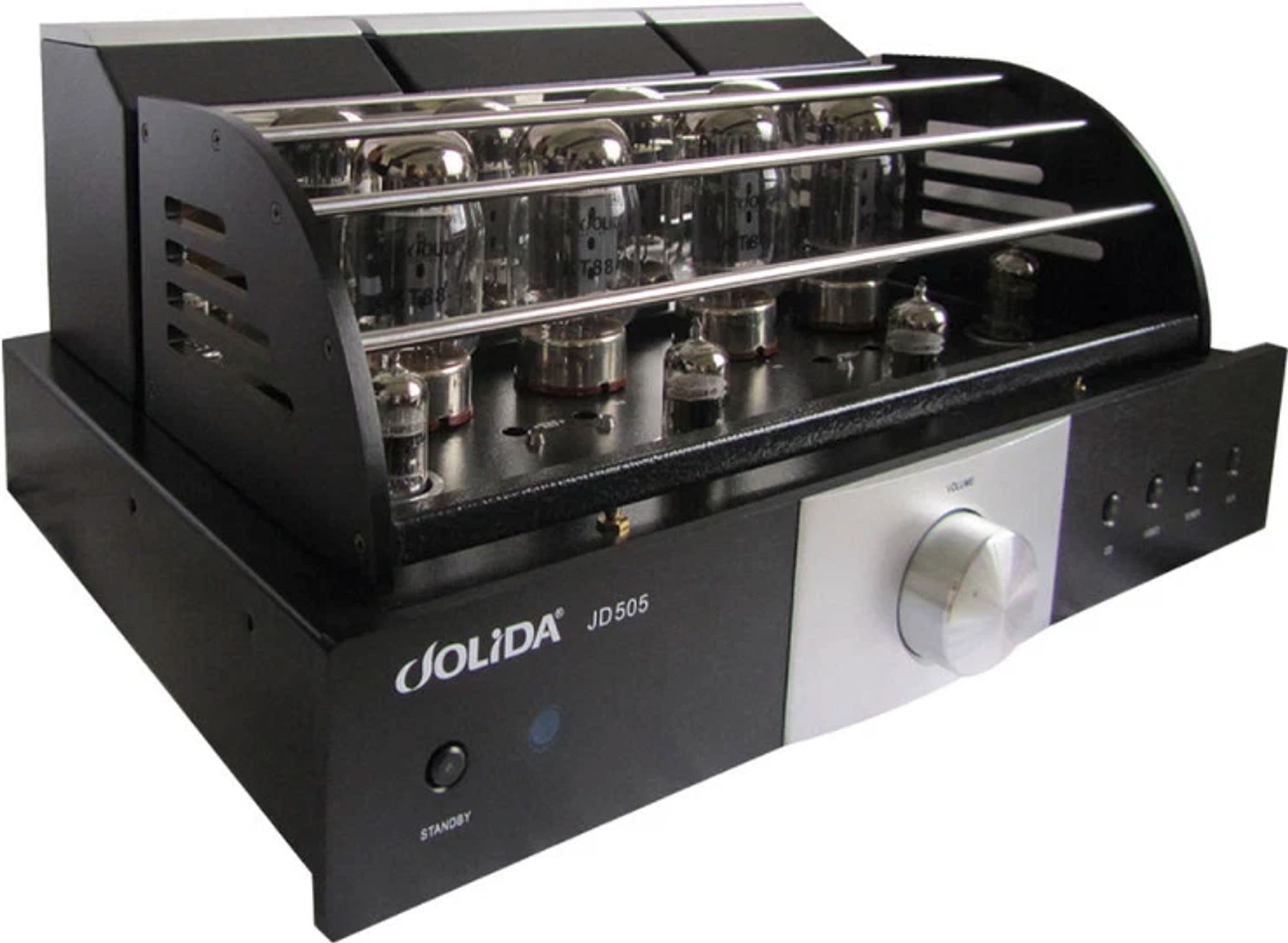

Jolida JD 505

Get ready to discover the Jolida JD505 tube integrated amplifier, an audio masterpiece that combines exceptional performance with an attractive design. This stunning amplifier has been recently upgraded by Mitch Singerman, a renowned expert, giving it enhanced dynamics and clarity.

The JD505 is a Class AB push-pull KT88 integrated amplifier capable of delivering an output power of 2 x 55W per channel. Its tube components include four Jolida KT88-98, two Jolida 12AX7, and two Jolida 12AT7. It features four RCA inputs and a tape monitor output. Its remote control allows you to adjust the volume, mute the sound, switch to standby mode, and select inputs.

One of the most impressive aspects of this amplifier is its exceptional frequency range from 15 Hz to 70 kHz at +/- 1 dB, ensuring faithful reproduction of all sound details. Its total harmonic distortion is less than 0.3%, ensuring crystal-clear sound quality even at high volumes. Additionally, its signal-to-noise ratio of over 88 dB guarantees listening without unwanted background noise.

The JD505’s design is as impressive as its performance. With dimensions of 430 mm in width, 324 mm in depth, and 220 mm in height (or 17 x 15 x 8.5 inches for our American readers), it has a commanding yet elegant presence in any room. Weighing 22 kg (including packaging), this amplifier is built to last.

The JD505 has been described as a “well-built, trouble-free” amplifier offering “solid tube sound with precise bass.” Moreover, it gives you the option to change the tubes to enhance musicality and dynamics, allowing you to customize your listening experience according to your preferences.

In summary, the Jolida JD505 tube integrated amplifier is a technical marvel that offers exceptional sound, refined design, and top-tier performance. Whether you are a seasoned audiophile looking for the perfect amplifier to complete your audio system or a novice eager to enter the world of high-fidelity, the JD505 is a serious option to consider.

• High Performance: The JD505 is a Class AB push-pull amplifier capable of delivering an output power of 55W per channel. These technical specifications allow this amplifier to provide clear and powerful sound that will satisfy all audiophiles.
• Exceptional Frequency Range: The JD505 amplifier offers a frequency range from 15 Hz to 70 kHz. This feature ensures precise reproduction of all sound details, from deep bass to crystal-clear highs.
• Elegant and Robust Design: The JD505 is a desirable piece not only for its performance but also for its appearance. With dimensions of 430 mm in width, 324 mm in depth, and 220 mm in height, this amplifier has an elegant presence that will add a touch of sophistication to any room.
• Customizable: The JD505 gives you the option to change the tubes to enhance musicality and dynamics. This flexibility allows you to customize your listening experience according to your preferences.
• Proven Reliability: The JD505 is known for its solid and trouble-free construction. It is a reliable product that offers solid tube sound with precise bass. It is a safe investment for those seeking the best possible sound.

Műszaki jellemzők

Erősítés

• Teljesítmény: 2 × 55 W (8 Ω terhelés mellett)
• Csövek:
  • 2 × 12AX7 és 2 × 12AT7 cső
  • 4 × KT88 pentóda tolóműködésben
• Automatikus előfeszítési rendszer (Easy Bias)

Hangminőség

• Teljes harmonikus torzítás: < 0,3 %
• Jel/zaj viszony: > 88 dB
• Bemeneti impedancia: 100 kΩ
• Bemeneti érzékenység: 300 mV
• Frekvenciaátviteli jellemző: 15 Hz – 75 kHz (± 1 dB)

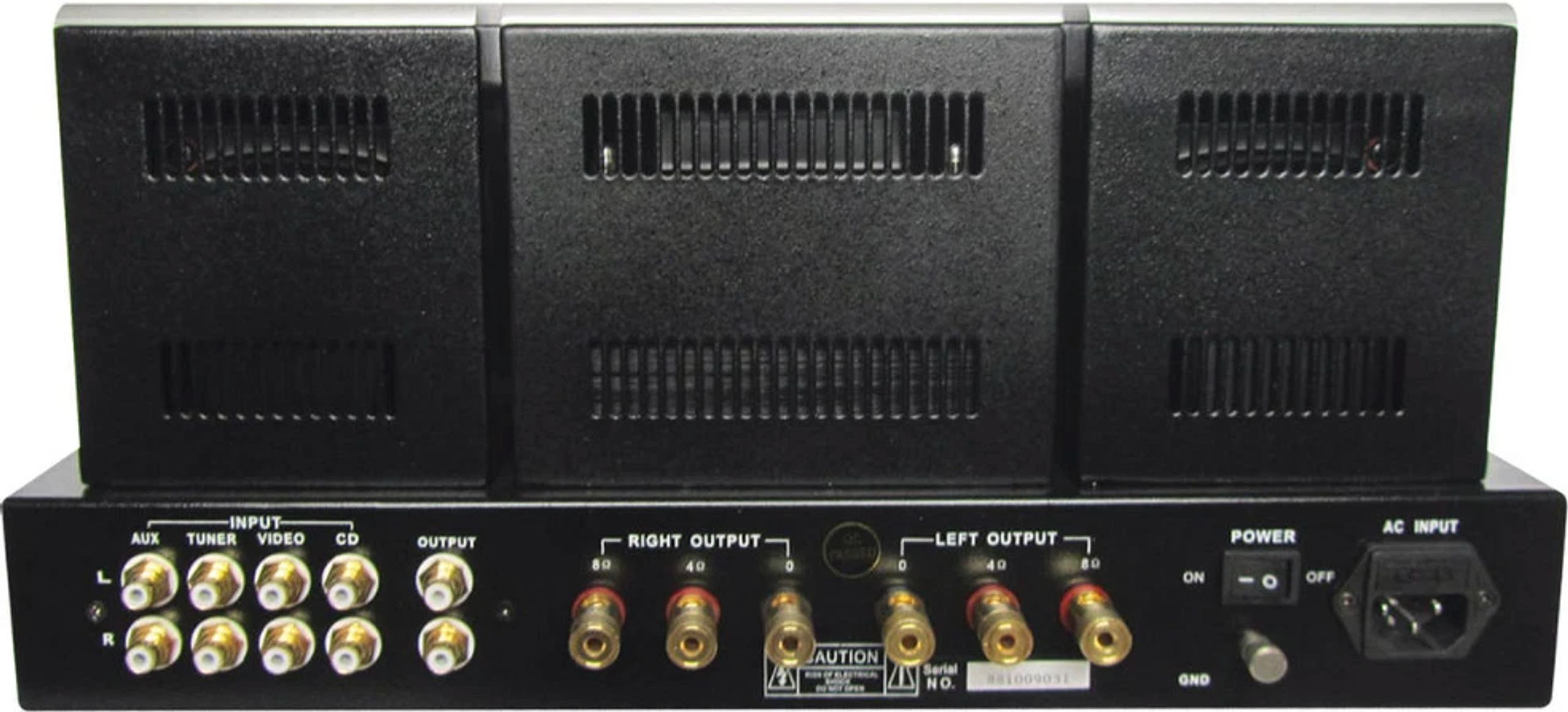

Csatlakozások

• 4 × aranyozott RCA vonalbemenet
• 1 × vezérlő vonalkimenet (monitorozás)
• 2 × 4 vagy 8 Ω hangszóró csatlakozó

Fizikai jellemzők

• Méretek (Sz × M × H): 430 × 200 × 340 mm
• Súly: 23 kg
• Leválasztható hálózati kábel
• Távirányító
